@DLT (Data Line Type)

On Line and 2D-Scatter charts, this macro can be used to draw markers only, lines only, or markers and lines.

SYNTAX:

@DLT nSeries nType

PARAMETERS:

nSeries; -1...n (where: n = the total number of series in the chart). -1 = apply to all series, 0 = Series 1, 1 = Series 2, etc.

nType; 1...3
1 = draw markers only
2 = draw lines only
3 = draw markers and lines.

EXAMPLE:

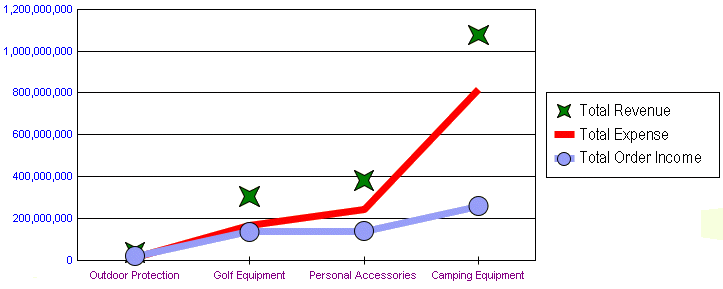

@LS -1 500 0 @SZ 50 @DLT 0 1 @DLT 1 2 @DLT 2 3

PERSISTENT:

YES

NOTES:

If you use @GRAPHTYPE to create a line chart or 2D scatter chart, this macro must be before the graph type selection.
