@LIMIT_VISIBLE_GROUPS (Limit Visible Groups)

This macro limits the number of visible groups in a chart by suppressing all data after nGroup. This macro is very useful for area charts where you wish to "cut off" data at some point in the chart.

SYNTAX:

@LIMIT_VISIBLE_GROUPS nGroup

PARAMETERS:

nGroup; 0..1024. 0 = "no suppression" 1...1024 = number of groups that will be visible

SYNTAX:

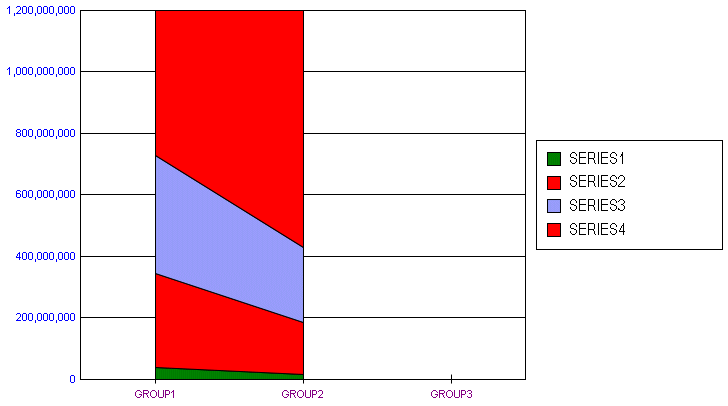

@LIMIT_VISIBLE_GROUPS 2

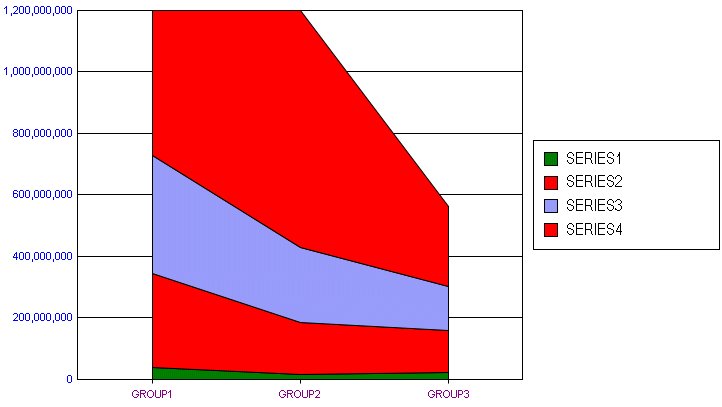

@LIMIT_VISIBLE_GROUPS 3

PERSISTENT:

YES

NOTES:

This macro only works for Single-Y stacked area chart types:

@GRAPHTYPE Value	Chart
1	Vertical Area Stacked
8	Horizontal Area Stacked
