@USER_MARKER (User-Defined Marker)

This macro adds a user-defined marker with optional text (szPhrase) to a chart. fX must be value that is between the minimum and maximum values shown on the X-Axis. fY must be value that is between the minimum and maximum values shown on the Y-Axis.

SYNTAX:

@USER_MARKER fX fY nShape nRed nGreen nBlue szPhrase ~

PARAMETERS:

fX; X-position, fY: Y-position

nShape; 0...7 selects one of the following markers:



nRed; 0..255, nGreen; 0..255, nBlue; 0..255 define the color of the marker.

szPhrase; Optional phrase. Add a tilde character (~) to this string if you intend to define another macro in the same title field.

EXAMPLE:

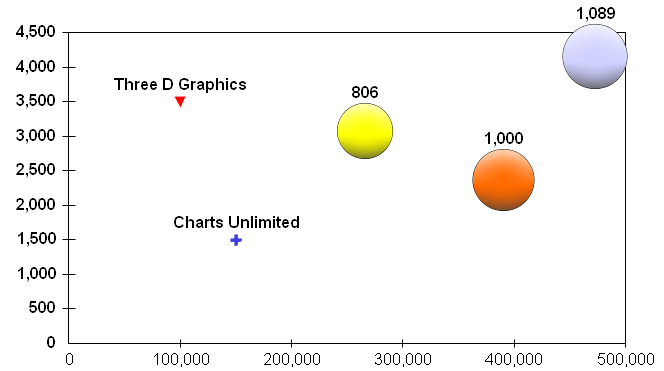

@USER_MARKER 100000 3500 7 255 0 0 Three D Graphics @USER_MARKER 150000 1500 5 0 0 255 Charts Unlimited

PERSISTENT:

NO

NOTES:

Charts Unlimited supports a maximum of eight user markers defined with @USER_MARKER and @USER_MARKER2

ALSO SEE:

@USER_MARKER2
