On 2D charts, this macro fills a portion of the chart frame with a circle that is drawn above the plot area. The nRed/NGreen/nBlue, nThickness, and nStyle parameters define the color, thickness, and line style of the circle. Set fStartX and fStopX to zero to select the lower left corner of the chart frame. The optional phrase (szPhrase) is drawn in the middle of the circle.
SYNTAX:
@USER_CIRCLE_ABOVE fStartX fStopX fStartY fStopY nRed nGreen nBlue nThickness nStyle szPhrase
PARAMETERS:
fStartX; 0.0...1.1 X-Axis start location
fStopX; 0.0...1.1 X-Axis stop location
fStartY; 0.0...1.1 Y-Axis start location
fStopY; 0.0...1.1 Y-Axis stop location
nRed; 0...255 defines the RED portion of the RGB color
nGreen; 0...255 defines the GREEN portion of the RGB color
nBlue; 0...255 defines the BLUE portion of the RGB color
nStyle; 0...15 selects the outline style:
0=Solid
1=Dashed
2=Dotted
3=Dot-Dash
4=Dash-Dot-Dot
5=Medium Dash
6=Short Dash
7=Long Dash
8=Long Dot
9=Dot-Dot-Dot
10=Dash-Dash-Dot
11=Dash-Dash-Dot-Dot
12=Long Dash-Dot
13=Long Dash-Dot-Dot
14=Long Dash-Dash-Dot
15=Long Dash-Dash-Dot-Dot
nThickness; 0...1000 selects the thickness of the outline.
szPhrase; Optional phrase. Add a tilde character (~) to this string if you intend to define another macro in the same title field.EXAMPLE:

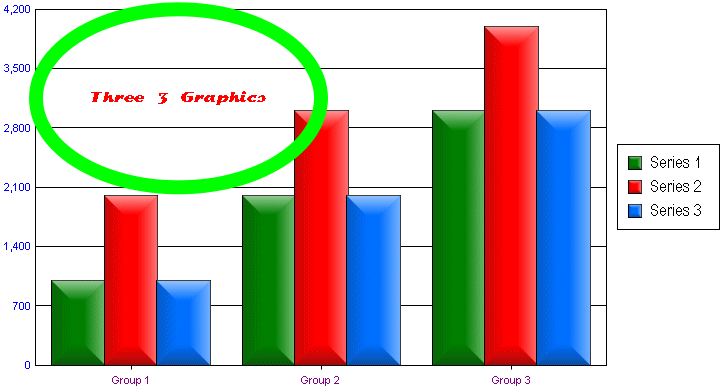

@USER_LABEL_FONT 12 255 0 0 255 Splash
@USER_CIRCLE_ABOVE 0.0 0.5 1.0 0.5 0 255 0 0 1000 Three D Graphics
PERSISTENT:
NO
NOTES:
- Use the @USER_LABEL_FONT macro to define the size, color, and font of szPhrase.
- Charts Unlimited supports a maximum of 20 user-defined areas that are created with the following macros: @UF, @USER_CIRCLE, @USER_CIRCLE_ABOVE, @USER_FILL, @USER_FILL2, @USER_FILL_CIRCLE, @USER_FILL_CIRCLE_ABOVE, @USER_FILL_CIRCLE2, @USER_FILL_CIRCLE2_ABOVE, @USER_RECT, and @UW.
- @UF, @USER_CIRCLE..., @USER_FILL..., and @USER_RECT macros are independent of the X or Y axis values/scales.
