@XSZN (X-Axis Line with Label & Value)

This macro adds a user-defined line on the X-axis at value fValue with the label sZLabel. The value of fValue is appended to sZLabel. For vertical orientation, the line is drawn vertically with the label and value on the top side of the chart. For horizontal orientation, the line is drawn horizontally with the label and value on the right side of the chart.

SYNTAX:

@XSZN fValue nXFixup nYFixup sZLabel

PARAMETERS:

fValue; Value at which to add the user-defined line on the X-axis

nXFixup, nYFixup; -16000...16000 adjusts label placement closer to or further away from the line.

sZLabel; Label string to show next to line. Add a tilde (~) character to the end of the string if you intend to define other macros in the same title field.

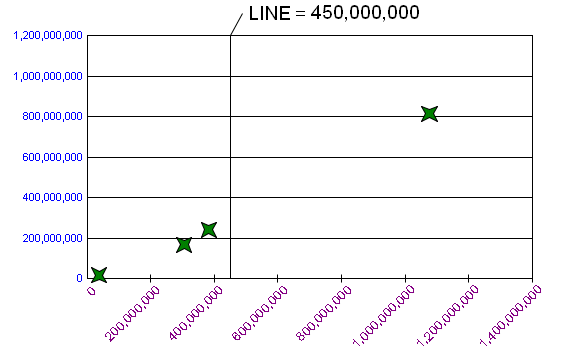

EXAMPLE:

@XSZN 450000000 0 0 LINE =

PERSISTENT:

NO

NOTES:

Charts Unlimited supports a maximum of 20 user-defined lines. User-defined lines are drawn with: @CX, @CXY, @CY, @X, @XG, @XSZ, @XSZL, @XSZN, @XSZNL, @XY, @XY_DP2, @Y, @YSZ, @YSZL, @YSZN, & @YSZNL.

ALSO SEE:

@XSZ, @XSZL, @XSZNL
