This macro adds a user-defined line on the Y1-axis at value fValue with the label sZLabel. The value of fValue is appended to sZLabel. For vertical orientation, the line is drawn horizontally with the label and value on the right side of the chart. For horizontal orientation, the line is drawn vertically with the label and value on the bottom side of the chart.
@YSZN fValue nXFixup nYFixup sZLabel
fValue; Value at which to add the user-defined line on the Y1-axis
nXFixup, nYFixup; Used to adjust the label to make closer to or further away from the line.
sZLabel; Label string to show next to line. Add a space to the end of your label if you want a space to appear between the label and fValue.

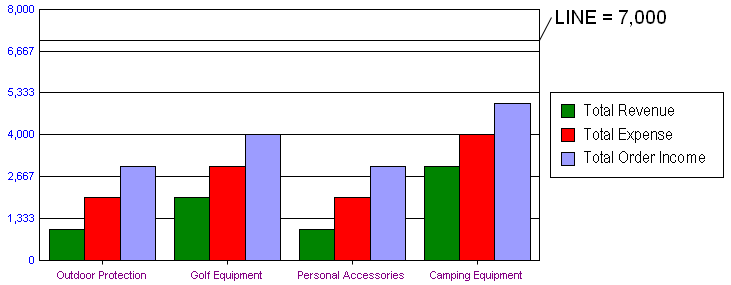

@YSZN 7000 0 0 LINE =
Charts Unlimited supports a maximum of 20 user-defined lines. User-defined lines are drawn with: @CX, @CXY, @CY, @X, @XG, @XSZ, @XSZL, @XSZN, @XSZNL, @XY, @XY_DP2, @Y, @YSZ, @YSZL, @YSZN, & @YSZNL.
@YSZ, @YSZL, @YSZNL
